Service and Maintenance (cont.)

Removing the Outer Side Panels. (Section 10)

1) Disconnect oven from gas supply, and pull the oven from wall and remove outer back panel

(secured by sixteen screws).

2) Remove doors as described in Section 9, and remove bottom front panel and bottom capping

piece.

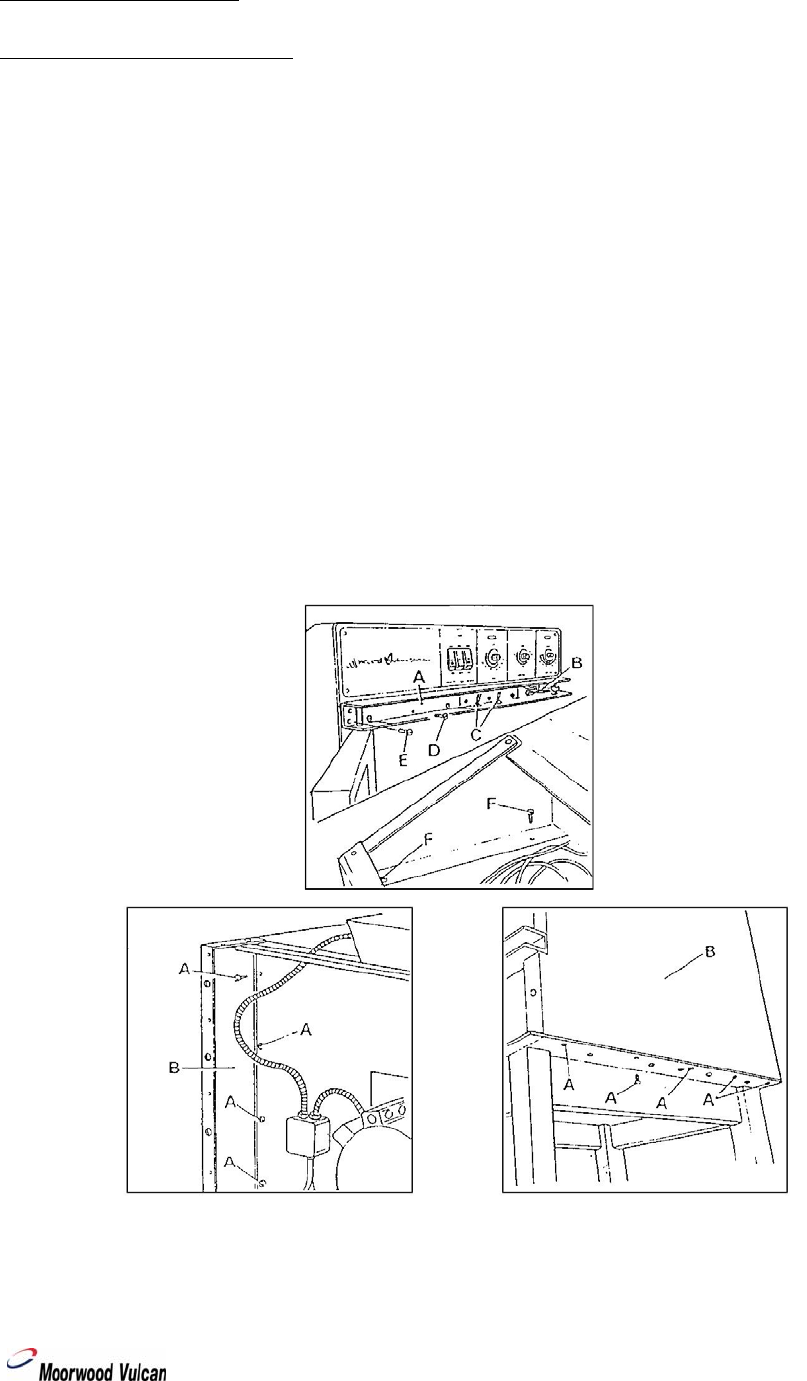

Fig. 13

3) Remove top front channel (A), complete with door micro-switch (B) and door catches (C) by

removing six self-tapping screws (D) and four round head screws (E).

4) Remove top cover plate from rear of control panel (secured by twelve screws) and remove two

sets crews (F) securing control panel to outer side panel being removed.

Fig. 14

5) Remove five screws (A)-securing bottom edge of outer side panel (B), pull panel towards front of

oven and withdraw.

6) Fit new side panel by reversing the above procedure.

Fig. 12

Manual Part No: 930087-01 SNORKEL Gas Convection Oven - 34 –

Manual Rev No: 1

Fig. 13 Fig. 14
