Service and Maintenance (cont.)

Removing the Load Control. (Section 2)

1) Remove the top cover from the control panel by undoing the twelve fixing screws.

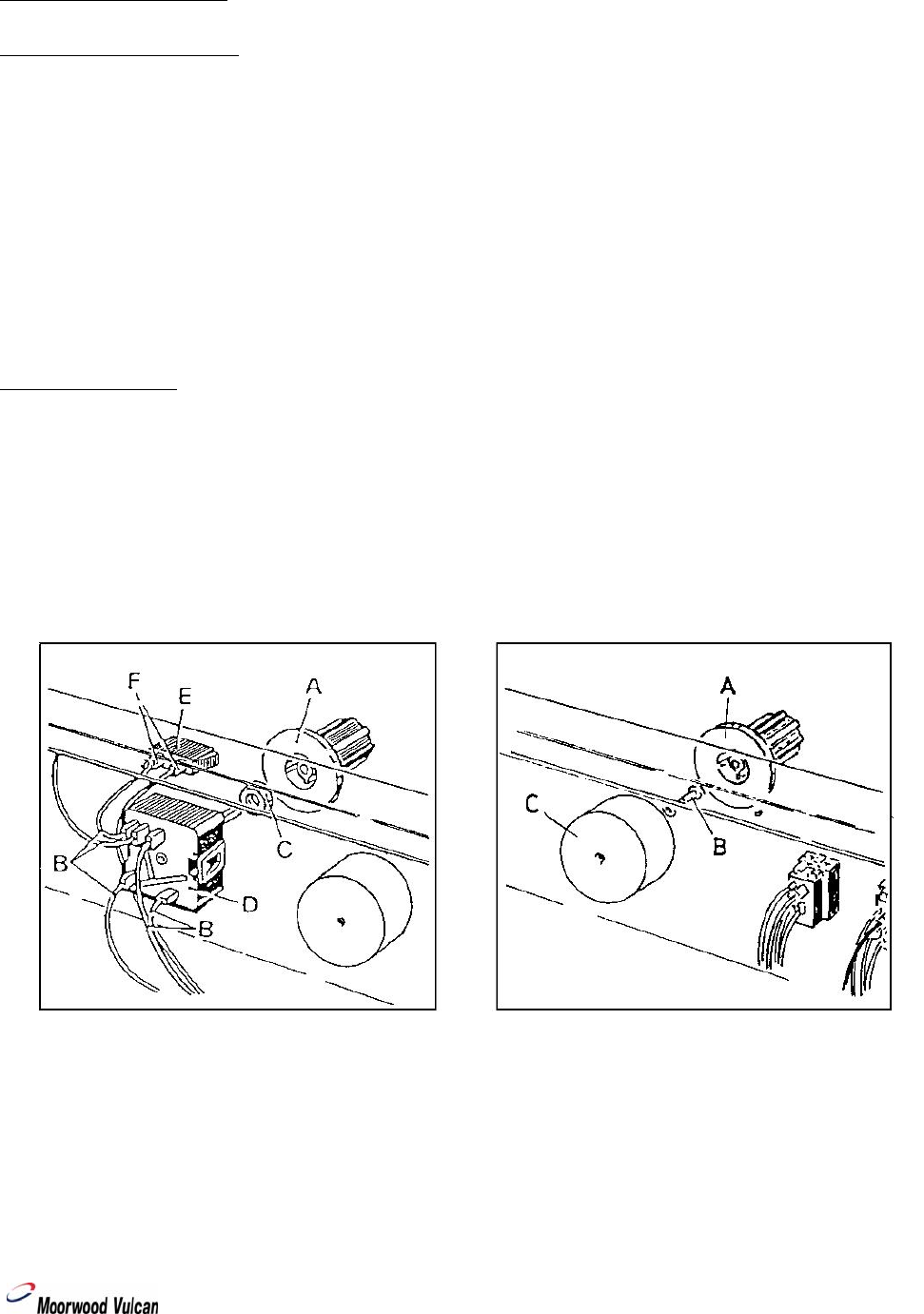

Fig. 3

2) Slacken grub screw and pull off the control knob (A).

3) Disconnect the wiring (B), noting their positions.

4) Remove locknut (C) and withdraw load control (D) from the rear of the control panel.

5) To renew warning light (E), disconnect wiring (F), noting their positions. Press in locking lugs at

the ends of light and pull through front of control panel.

6) Refit load control and warning light by reversing the above procedure.

Removing the Timer. (Section 3)

1) Remove the top cover from the control panel by undoing the twelve fixing screws.

Fig. 4

2) Pull off the control knob (A).

3) Remove two screws (B) and washers, and withdraw timer (C) from rear of control panel.

4) Replace by reversing the above procedure.

Fig. 3 Fig. 4

Manual Part No: 930087-01 SNORKEL Gas Convection Oven - 30 –

Manual Rev No: 1
